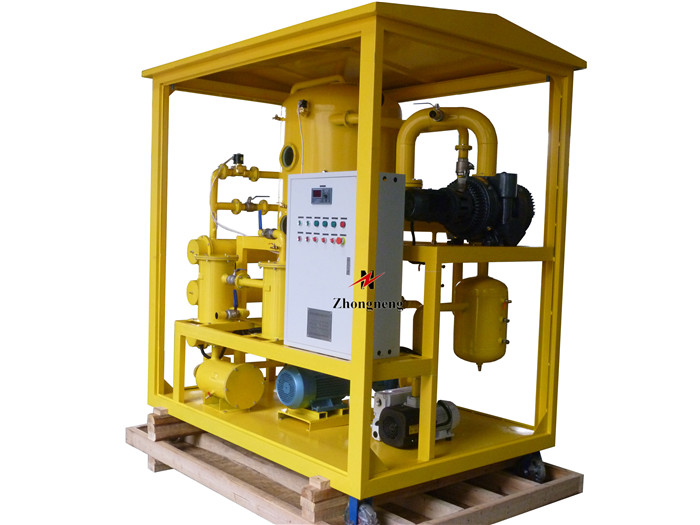

ZYD-T Ultra High Vacuum Transformer Oil Treatment Machine

Share to:

ZYD-T is special for treating the used and old dielectric oil, transformer oil, mutual oil, switch oil. Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machine's working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75KV. It is very suitable for the large electric&insulation equipments.

Quantity:
  • ZYD-100
  • ZHONGNENG
  • 8421299090

Features:
1. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
2. High absorption speed: Absorption speed power≥333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. Distinctive removing impurity system which filters the impurity through double FH trapezoidal network and absorbs the impurity by high polymer without the mechanical power
5. Carbon fiber infrared heating system that can have the oil contain zero sum of ethyne after the treatment
6. Especially applied to vacuum filling oil and drying for power transmission equipments which power are over 110KV
7. Any insulating oil can be treated on-line at the working site.

Advantages:
Comparing with the single-stage vacuum oil purifier, this machine dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.




Parameters

Unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-250

ZYD-300

Flow   Rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working   Vacuum

Mpa

-0.08 -0.099

Working   Pressure

Mpa

≤ 0.3

Temp   Range

20 80

Power   Supply


380V/   50Hz/ 3Phase( As per your requirement)

Working   Noise

Db

60 - 80   (Depended on the configuation)

Heating   Power

KW

30

30

48

72

72

90

120

Total   Power

KW

33

35

55

80

82

102

135

Inlet/Outlet   Diam

 MM

25

32

42

50

50

60

60

Weight

KG

450

550

750

950

1200

1850

2000

Size

Length

MM

1450

1450

1750

1850

1950

2050

2150

Width

MM

950

1000

1250

1300

1350

1400

1450

Height

MM

1700

1750

1950

2000

2050

2100

2150

AFTER   TREATMENT

Dielectric   Strength

KV

≥ 75-85

Water   Content

PPM

≤ 3

Gas   Content

%

≤ 0.1

Particle   Size

μ

≤ 3

Cleanliness                                           ≤NAS 1638 Grade 5

Dimensions will be changed if any special type required
