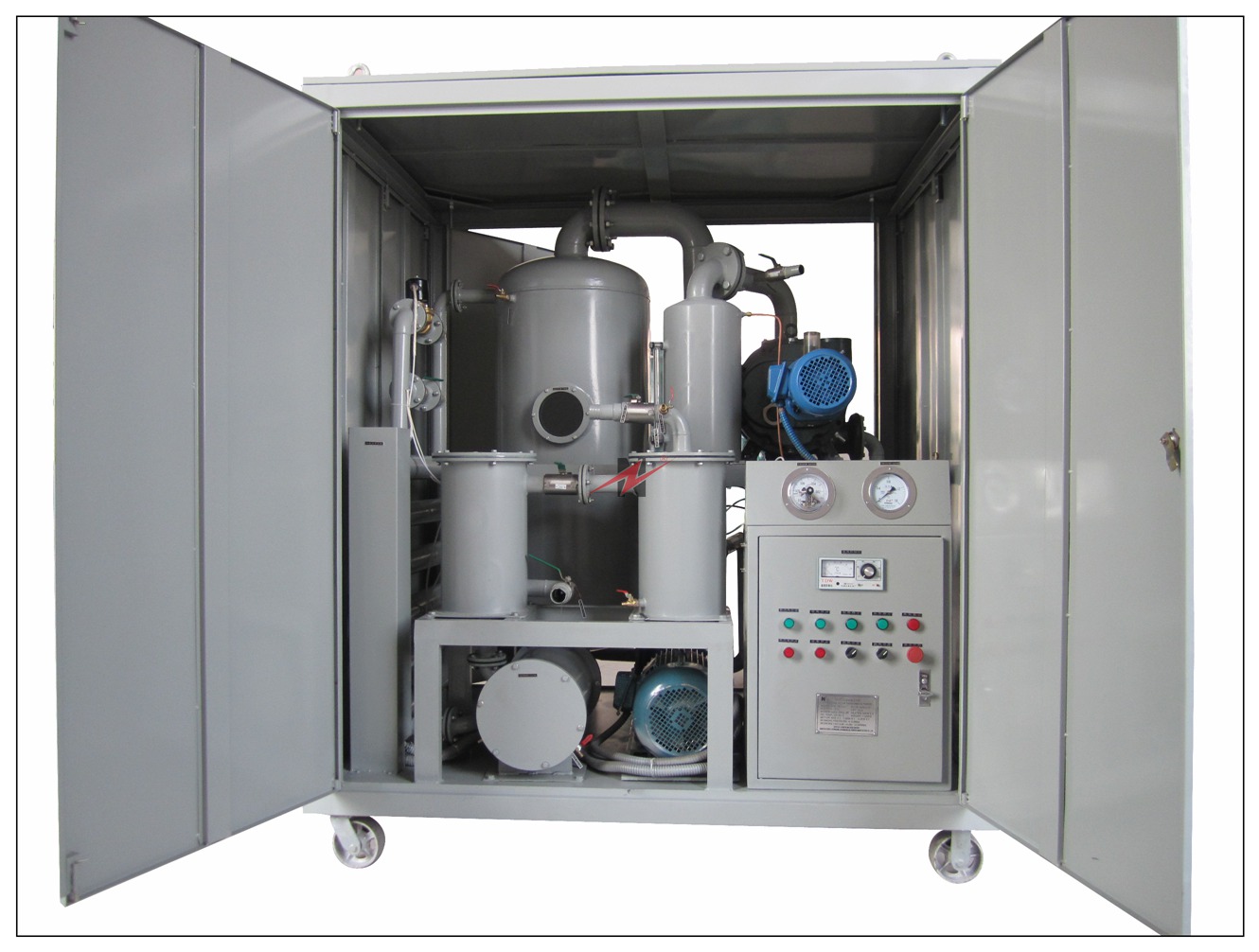

ZYD-M Enclosed Mobile Type Transformer Oil Purifier

loading

Share to:
sharethis sharing button
Application:
According to user's requirements, we developed Series ZYD-M mobile insulating transformer oil purifier, this machine equips the car wheels, which can be easy to move to any work point by traction. It is special suitable for purifying the transformer oil which located in different fields. This machine is mainly used for purifying unqualified transformer oil, switch oil, mutual inductor oil. Besides all functions of series ZYD, the best advantage of ZYD-M is that can move long distance for working in field according to fieldwork requirement.
Availability:
Quantity:
  • ZYD-200

  • ZHONGNENG

  • 8421299090

Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dust proof, move easy.
2. Installation of car types, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil and improve oil BDV value highly.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110V substation live line work on site.
9. Can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dust proof, it can move long distance for working in field. The mobile cart can be adjusted as you what angle you want and it is skid resistance in the mobile process. The unit takes high quality materials and big car wheels for the trailer and for long distance running with vibration resistant.



















Parameters

Unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-250

ZYD-300

Flow   Rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working   Vacuum

Mpa

-0.08 -0.099

Working   Pressure

Mpa

≤ 0.3

Temp   Range

20 80

Power   Supply


380V/   50Hz/ 3Phase( As per your requirement)

Working   Noise

Db

60 - 80   (Depended on the configuation)

Heating   Power

KW

30

30

48

72

72

90

120

Total   Power

KW

33

35

55

80

82

102

135

Inlet/Outlet   Diam

 MM

25

32

42

50

50

60

60

Weight

KG

450

550

750

950

1200

1850

2000

Size

Length

MM

1450

1450

1750

1850

1950

2050

2150

Width

MM

950

1000

1250

1300

1350

1400

1450

Height

MM

1700

1750

1950

2000

2050

2100

2150

AFTER   TREATMENT

Dielectric   Strength

KV

≥ 75-85

Water   Content

PPM

≤ 3

Gas   Content

%

≤ 0.1

Particle   Size

μ

≤ 3

Cleanliness                                           ≤NAS 1638 Grade 5

Dimensions will be changed if any special type required
