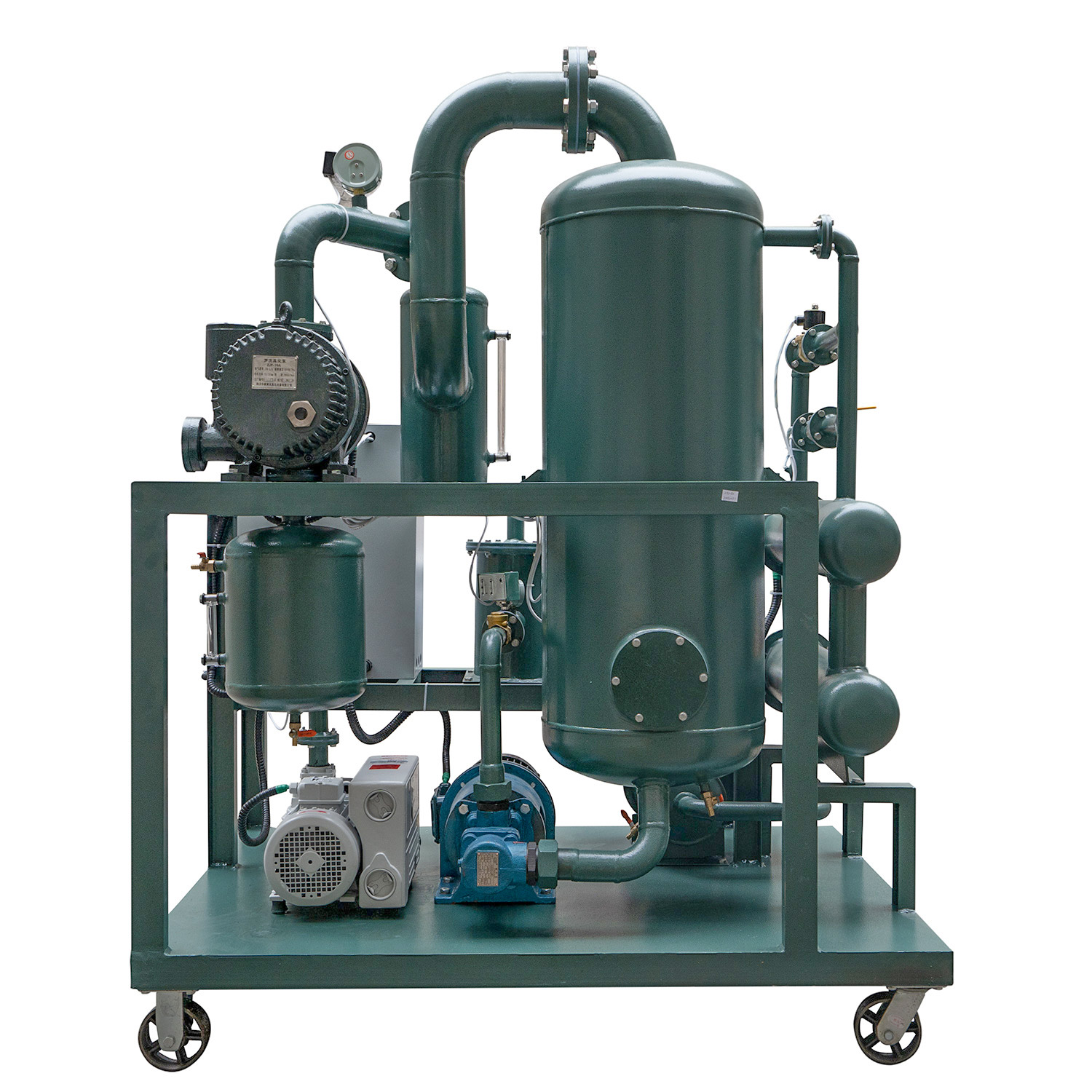

Updated 3000LPH Double Stage Vacuum Transformer Oil Treatment Machine

Share to:
The updated ZYD-50 double stage vacuum transformer oil purifier machine is designed to purify and recover various kinds of insulating oil, transformer oil, dielectric oil and etc.
Color:
Quantity:
  • ZYD-50
  • ZHONGNENG
  • 8421299090

Features:
1. Effiecient vacuum dehydration system, composed by Leybold brand vacuum pump and reliable Roots pump to achieve stable high vacuum degree, which provide a sound working condition for vacuum dehydration.

2. Adopt 3GR series screw oil pump, lower noise and ensure oil output efficiency when the machine work at high vacuum condition -0.098MPa.

3. After purification, the moisture content is less than 3PPM; oil breakdown voltage is more than 75KV.
Advantages:
Comparing with the single-stage vacuum oil purifier, this machine adds ROOTS vacuum system, second stage of separating system to improve the effect of purification which dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.



 Customer Feedback

 Customer feedback-20210510ZYD-50 machine on customer site-1













Parameters

Unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-250

ZYD-300

Flow Rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working Vacuum

Mpa

-0.08 ~-0.099

Working Pressure

Mpa

≤ 0.3

Temp Range

20 ~80

Power Supply


380V/ 50Hz/ 3Phase( As per your requirement)

Working Noise

Db

60 - 80 (Depended on the configuation)

Heating Power

KW

30

30

48

72

72

90

120

Total Power

KW

33

35

55

80

82

102

135

Inlet/Outlet Diam

 MM

25

32

42

50

50

60

60

Weight

KG

450

550

750

950

1200

1850

2000

Size

Length

MM

1450

1450

1750

1850

1950

2050

2150

Width

MM

950

1000

1250

1300

1350

1400

1450

Height

MM

1700

1750

1950

2000

2050

2100

2150

AFTER TREATMENT

Dielectric Strength

KV

≥ 75-85

Water Content

PPM

≤ 3

Gas Content

%

≤ 0.1

Particle Size

μ

≤ 3

Cleanliness                                         ≤NAS 1638 Grade 5

Dimensions will be changed if any special type required
